Wastewater Treatment Capacity Upgrading

Duration: 2011-2012

Description

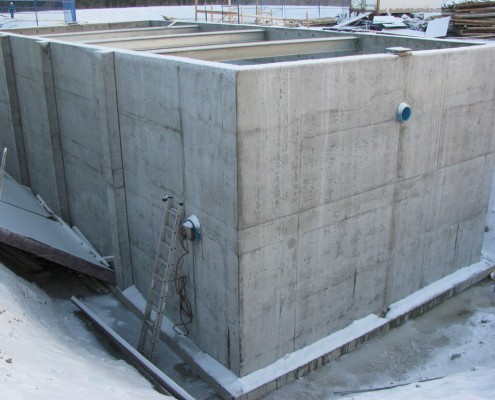

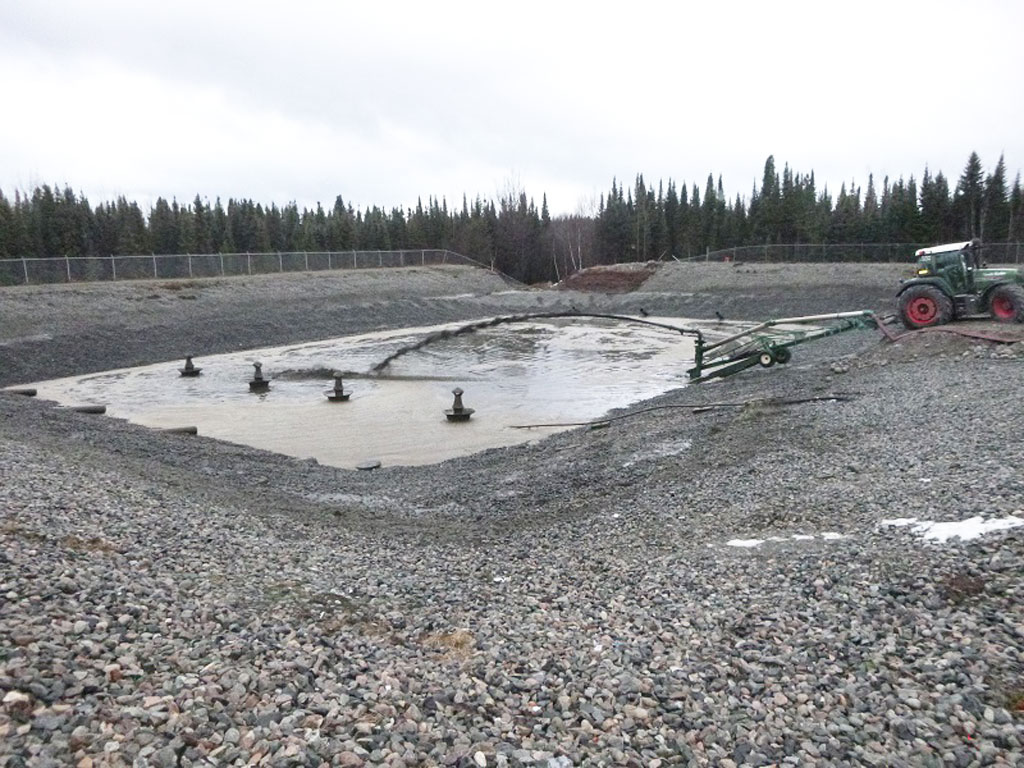

The selected treatment process included implementing a fluidized-support biological reactor installed upstream of existing lagoons to remove most of the soluble organic pollution. A new grinder and raked bar screen were installed as pre-treatment to remove finer solid particles. Waste retained by the raked bar screen is automatically compacted and bagged. A phosphate removal phase was also added to the process. Finally, the outfall was extended beneath the lake using a directional drilling technique.

Key Elements:

  • Addition of a fluidized-support biological reactor upstream of existing lagoons
  • Phosphate removal treatment using a coagulation/decantation process
  • Mechanical processes
  • Extension of the outfall by directional drilling

Localization: Opitciwan, Québec

PDF: on request

Wastewater Treatment Capacity Upgrading

Duration: 2013-2014

Description

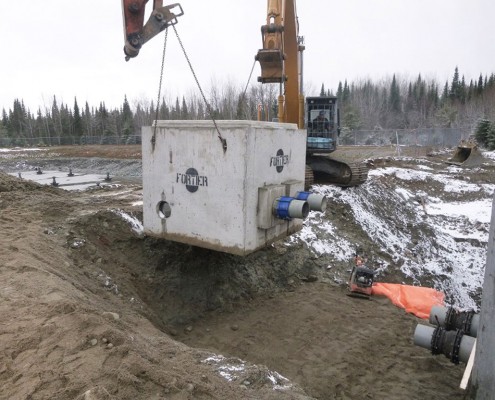

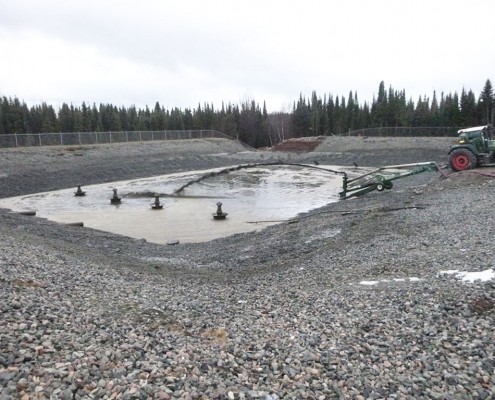

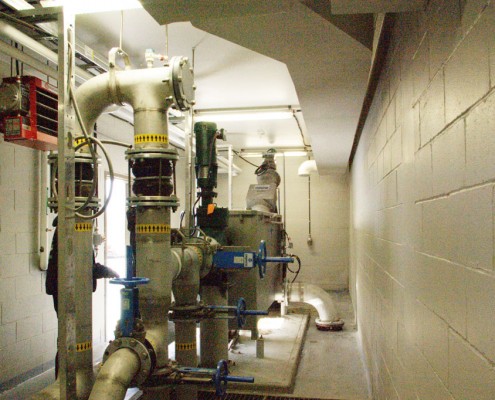

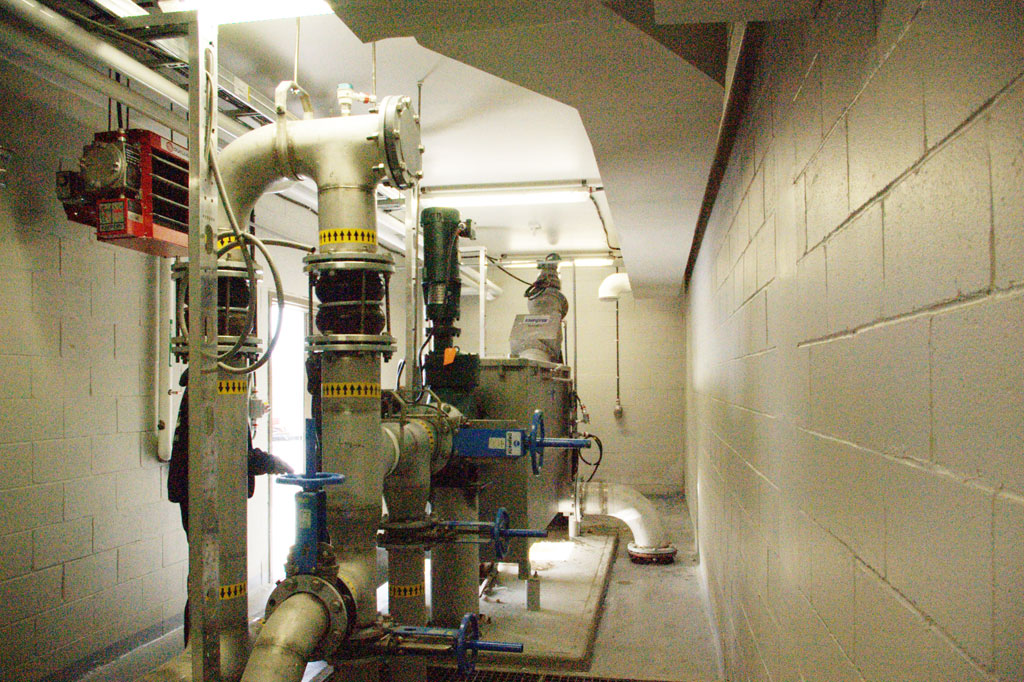

The selected treatment process included implementing a fluidized-support biological reactor placed upstream of the existing aerated lagoons to remove most of the soluble organic pollution. Raw water is routed to the wastewater treatment plant by gravity. This setup also required the installation of a combined grinder and raked bar screen in an underground channel.

Key Elements:

  • Addition of a fluidized-support biological reactor upstream of existing aerated lagoons
  • Mechanical processes

Localization: Waswanipi, Québec

PDF: on request

Aerated Lagoons for Wastewater Treatment

Duration: 2012-2013

Description

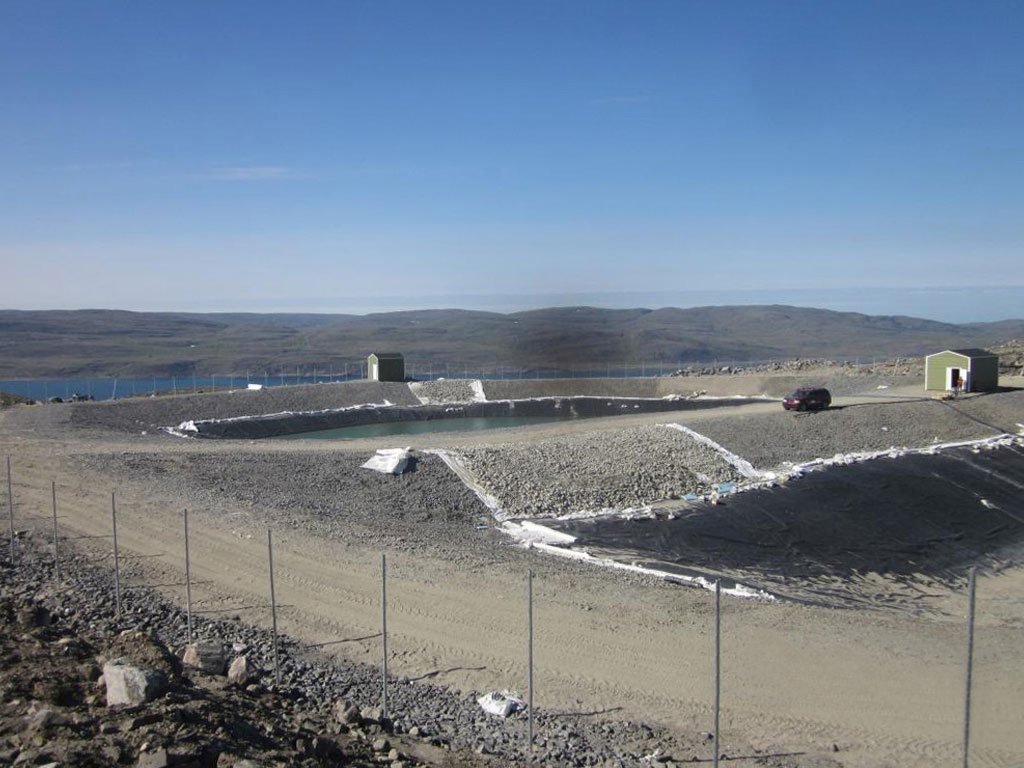

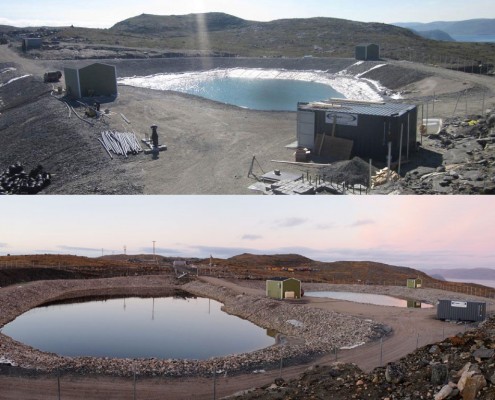

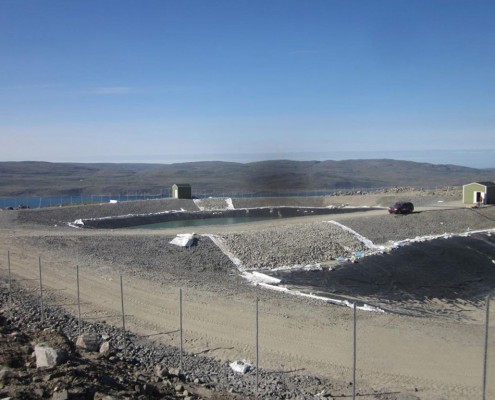

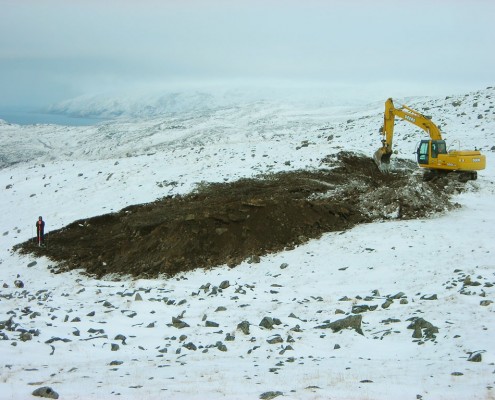

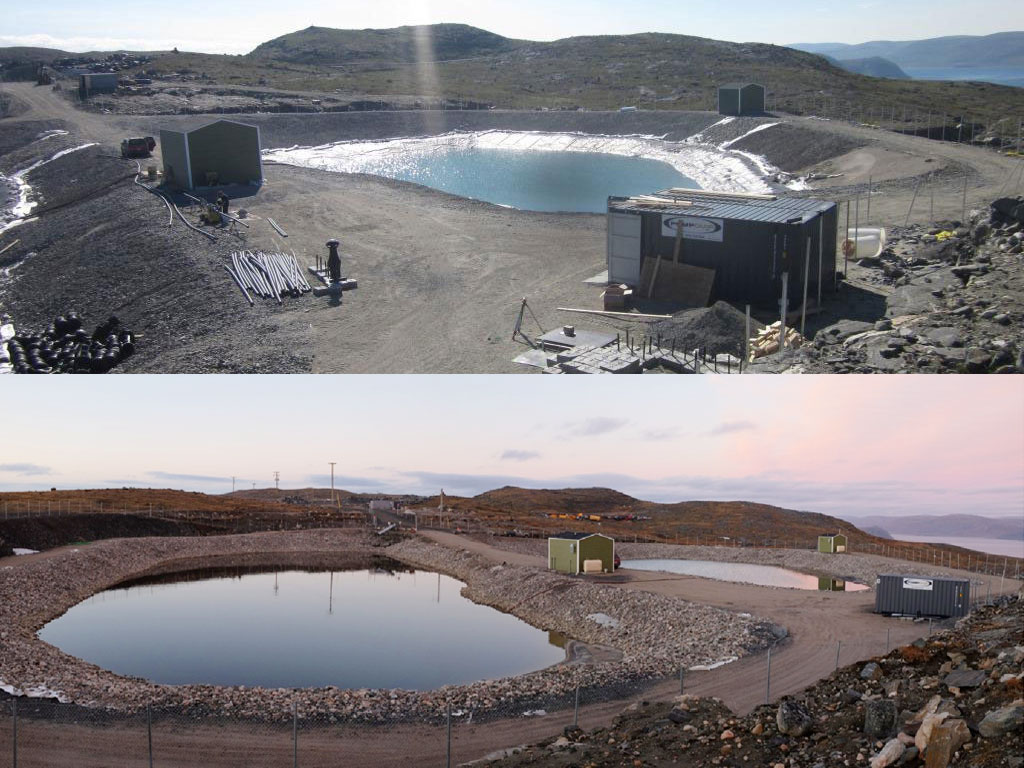

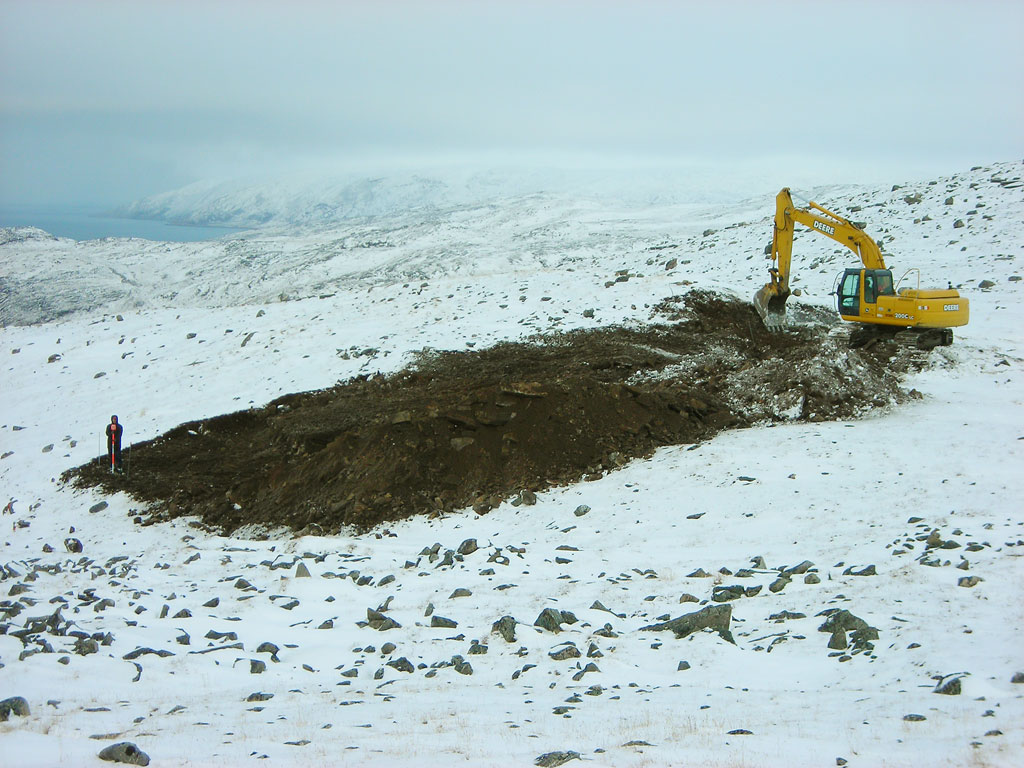

The selected technology involved the construction of two (2) aerated lagoons in series. The topography and geology of the Salluit region did not allow the implementation of this technology in a conventional manner. It proved necessary to construct both lagoons by blasting bedrock and using blasted rock as material for dam construction. Granular layers constitute the final cover and an impervious geomembrane upholsters all the underlying layers. Finally, aeration lines carry air downward into the lagoons through blowers installed in the transfer building.

Key Elements:

  • Construction of two (2) aerated lagoons
  • Mechanical processes between lagoons and at the outfall
  • Installation of a geomembrane

Localization: Salluit, Québec

PDF: on request
